Falatto PV 550W
Efficient · Reliable · Durable – Create value from every ray of sunshine

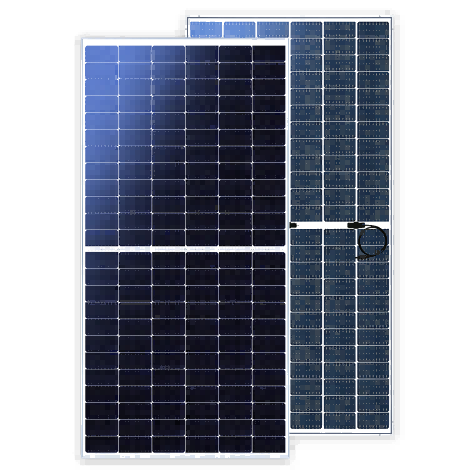

Falatto PV 550W
The Falatto PV 550W is ideal for residential and commercial rooftops. Featuring 182mm large-format wafers and multi-busbar technology, it achieves 21.2% conversion efficiency.
Low-voltage, high-power design reduces BOS costs. Passes rigorous PID and salt spray tests – suitable for diverse climate conditions.
50000+
Global Installations
12000+
Business services
15-25%
Electricity Bill Savings
98%
Positive rating
Key Features
550W
Output power
Low LID
Light Induced Degradation
0~3%
Power tolerance
21.3%
Conversion efficiency
Multi-busbar technology
Improved light capture
12-year
Warranty
25-year
Linear power warranty
Specifications
| Parameter | Specification |
|---|---|
|
Maximum Power (Pmax) |
550W |
|
Module Efficiency |
21.3% |
|
Open Circuit Voltage (Voc) |
49.8 V |
|
Short Circuit Current (Isc) |
13.9 A |
|
Maximum Power Voltage (Vmp) |
41.8 V |
|
Maximum Power Current (Imp) |
13.2 A |
|
Maximum System Voltage |
1500 V DC |
|
Power Tolerance |
0 ~ +5 W |
|
Cell Type |
Monocrystalline, 182×182mm |
|
Number of Cells |
144 (6×24) |
|
Dimensions |
2279 × 1134 × 35 mm |
|
Weight |
28.5 kg |
|
Connector |
MC4 compatible |
|
Cable |
4mm², 300mm positive/negative |
|
Operating Temp |
-40℃ ~ +85℃ |
Applications
Residential rooftop
5-6 panels cover daily household needs
Commercial rooftop
Reduce business electricity costs
Small ground-mounted plant
Cost-effective
