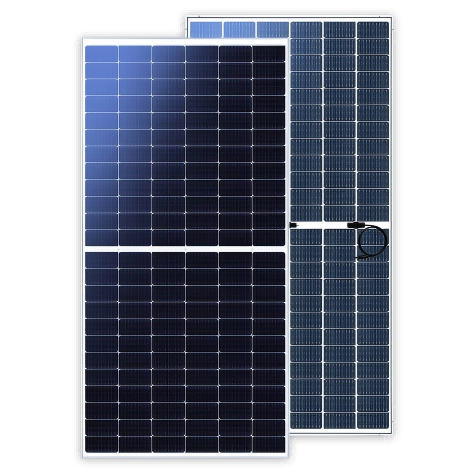

Falatto PV 580W
Efficient · Reliable · Durable – Create value from every ray of sunshine
Falatto PV 580W
The Falatto PV 580W features 182mm large-format wafers and half-cut cell technology, achieving 22.5% conversion efficiency. Half-cut design reduces internal resistance and losses – performs better under shading.
Ideal for commercial rooftops and ground-mounted plants, especially where space is limited.
40000+
Global Installations
10000+
Business services
15-25%
Electricity Bill Savings
98%
Positive rating
Key Features
580W
Output power
182mm
Large-format wafers
0~3%
Power tolerance
22.5%
Conversion efficiency
Low temperature coefficient
Excellent in high-temperature environments
12-year
Warranty
Bifacial
Bifacial option available
Specifications
| Parameter | Specification |
|---|---|
|
Maximum Power (Pmax) |
580W |
|
Module Efficiency |
22.5% |
|
Open Circuit Voltage (Voc) |
50.2V |
|
Short Circuit Current (Isc) |
14.2 A |
|
Maximum Power Voltage (Vmp) |
42.1 V |
|
Maximum Power Current (Imp) |
13.8 A |
|
Maximum System Voltage |
1500 V DC |
|
Power Tolerance |
0 ~ +5 W |
|
Cell Type |
Monocrystalline, 182×182mm |
|
Number of Cells |
144 (6×24) |
|
Dimensions |
2279 × 1134 × 30 mm |
|
Weight |
31.8 kg |
|
Connector |
MC4 compatible |
|
Cable |
4mm², 300mm positive/negative |
|
Operating Temp |
-40℃ ~ +85℃ |
Applications
Commercial rooftop
Higher power density, saves installation space
Agri-PV
Half-cut design better for partial shading
Solar carport
aesthetic and functional
Customer Case
